Automotive Trim Parts Bonding and Lamination

Automotive Interior and Exterior Trim Parts Bonding and Lamination

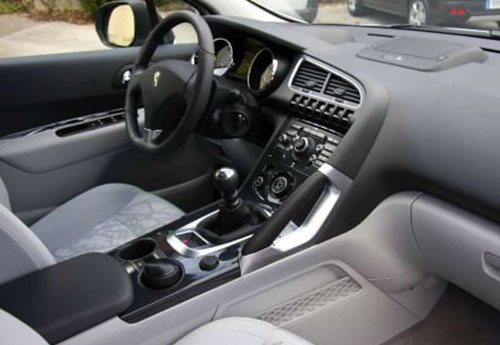

Interior and exterior components bonding and lamination relate to the good looks and safety of automobile. And the increasing mix of challenging material combinations must be accommodated. COMENS technologies for bonding and laminating trim parts and components like car spoiler, tailgates, door panel, headliners, pillars, parcel shelves, spare tire plate, sun visor, lamp light, and so on with two-component polyurethane adhesives, two-component acrylic adhesives, polyurethane dispersions (PUD) adhesives, PUR hot melt adhesives.

Two Component Polyurethane Adhesives and Acrylic Adhesives

The two component Polyurethane adhesives and Acrylic Adhesives for vehicle trim part bonding are environmental friendly, low TVOC, low odor. The adhesives can bond well with a variety of metal, and composite materials SMC, RTM, FRP and ABS, PC, etc.

Water-based Polyurethane Dispersions (PUD) Adhesives

Flexibond 5300 is easy to use for leather membrane laminating and processing. This innovation is exhibiting excellent spray properties and offering lower activation temperatures, contributing to greener processes.

PRODUCT OVERVIEW

Product Overview Product Overview

Polyurethane & Acrylic Adhesives

	Flexibond 8100	Flexibond 8101 Series	Secubond 805	Secubond 905
Material	polyurethane	polyurethane	MMA(acrylic)	MMA(acrylic)
Mixing ratio	1:1	1:1	10:1	10:1
Working time	~40 min	3-5min/5-10 min/10-20 min	4-6 min	4-6 min
Pressing time	3-4 h	10-15 min/15-30 min/60-120 min	19-21 min	18-20 min
Shear strength	≥10 Mpa	≥10 Mpa	≥18 Mpa	≥17 Mpa
Metal	☆☆☆	☆☆☆	☆☆☆	☆☆
Plastic	☆☆☆	☆☆☆	☆☆☆	☆☆
Composite materials	☆☆☆	☆☆☆	☆☆	☆☆☆

PUD Adhesives

	Density (23 ℃)	Viscosity (23 ℃)	Solid Content	Package	Application
Flexibond 5300	1.01-1.07 g/cm3	4500±500 mPa.S	50±1%	20 kg drum	leather wrapped dashboard, center console, door panel, steering wheel, etc.

Note: The information on this page is based on test results from our laboratories as well as on experience gained in the field, and does in no way constitute any guarantee of properties. Due to the wide range of different applications, substrates, and processing methods beyond our control, no liability may be derived from these indications nor from the information provided by our free technical advisory service. Customer trials under everyday conditions, testing for suitability at normal processing conditions, and appropriate fit-for-purpose testing are absolutely necessary. For the specifications as well as further information, please refer to the latest technical data sheets.
